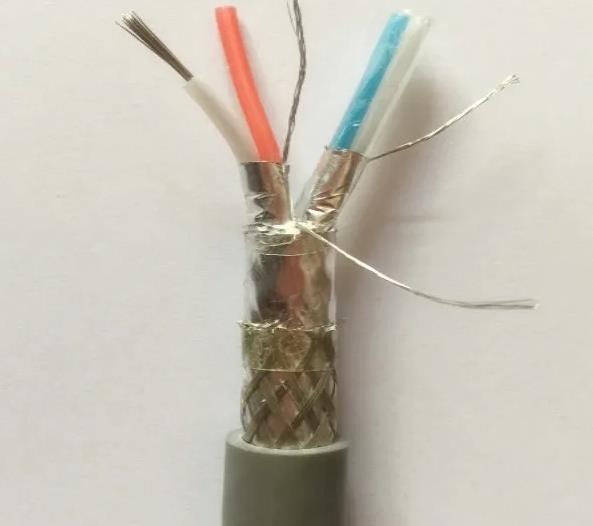

DJYPV計算機屏蔽控制電纜
- 電 話：0550-7311277
- 傳 真：0550-7311277
- 郵 箱：1045779281@qq.com
產品描述
電子計算機電纜使用特性：
1．額定電壓：UO/U 300/500V.
2．導體線芯高工作溫度：PVC及低鹵低煙阻燃PVCJ緣：70℃和105℃兩種；
聚乙烯J緣：70℃；交聯聚乙烯J緣：90℃；
無鹵低煙阻燃聚烯烴：70℃
無鹵低煙阻燃交聯聚烯烴 90℃和125℃兩種
3．z低環境溫度：固定敷設 －40℃；
非固定敷設 －15℃。
4．電纜允許小彎曲半徑：非鎧裝、聯鎖或編織鎧裝電纜不小于電纜外徑的6倍
銅帶屏蔽或鋼絲、鋼帶纏繞鎧裝電纜不小于電纜外徑的12倍
5．阻燃特性：符合GB/T 19666－2005標準，A類或B類。
電子計算機電纜/屏蔽電纜也是計算機控制電纜用于連接電子計算機外圍設備至生產現場，以及各種電器、儀表、自動裝置等需要的屏蔽控制電纜.
系列代號 Series Code | DJ | 計算機控制電纜 Computer control cables |
項目 Item | 代號 Code | 代號含義 Code Indication |
J緣材料 Insulation material | V | PVC、阻燃PVC或低鹵低煙阻燃PVC PVC、flame-proof PVC or low halogen and low smoke flame-proof PVC |
| Y | 聚乙烯或阻燃聚乙烯 PE or Flame-proof PE | |
| YJ | 交聯聚乙烯 XLPE | |
護套材料 Sheath material | V | PVC、阻燃PVC或低鹵低煙阻燃PVC PVC、flame-proof PVC or low halogen and low smoke flame-proof PVC |
| Y | 無鹵低煙阻燃聚烯烴(YJ-交聯型) Halogen-free and low smoke flame-proof polyolefin (YJ - cross-linked) | |
屏蔽材料 Shield material | P | 銅線或鍍錫銅線編織 Copper wire or tin plated copper wire braid |
| P3 | 鋁塑復合帶 Composite aluminium-plastics tape | |
| P2 | 銅帶或銅塑復合帶 Copper tape or composite copper-plastic tape | |
鎧裝材料 Armour material | 12 | 聯鎖鋼帶鎧裝PVC類護套 Interlocked steel tape armour PVC sheath |
| 13 | 聯鎖鋼帶鎧裝聚乙烯類護套 Interlocked steel tape armour PE sheath | |
| 22 | 繞包鋼帶鎧裝PVC類護套 Steel tape wrapped armour PVC sheath | |
| 23 | 繞包鋼帶鎧裝聚乙烯類護套 Steel tape wrapped armour PE sheath | |
| 32 | 纏繞鋼絲鎧裝PVC類護套 Winding steel wire armour PVC sheath | |
| 33 | 纏繞鋼絲鎧裝聚乙烯類護套 Winding steel wire armour PE sheath | |
| 92 | 編織鋼絲鎧裝PVC類護套 Braided steel wire armour PVC sheath | |
| 93 | 編織鋼絲鎧裝聚乙烯類護套 Braided steel wire armour PE sheath | |
| 52 | 聯鎖鋁帶或鋁合金帶鎧裝PVC類護套 Interlocked aluminium or aluminium-alloy tape armour PVC sheath | |
| 53 | 聯鎖鋁帶或鋁合金帶鎧裝聚乙烯類護套 Interlocked aluminium or aluminium-alloy tape armour PE sheath | |
| 其它 | 遇其它護套時，鎧裝表示方法同上，護套以“4"表示。如編織鋼絲鎧裝氟塑料護套表示為“94"。 If the sheath is made from other material, the armour is indicated in the same way as above. Sheath is signified by “4". For example, the braided steel wire armour fluoroplastic sheath may be indicated as “94". | |
耐熱等 Heat-resistant degree | 70 | 高工作溫度為70℃(省略) The highest operating temperature is 70℃(omitted) |
| 90 | 高工作溫度為90℃ The highest operating temperature is 90℃ | |
| 105 | 高工作溫度為105℃ The highest operating temperature is 105℃ | |
導體種類 Conductor Type | / | 單股導體 Single thread conductor |
| R | 多股絞合導體 Multiple threads stranded conductor | |
規格 Specification | 芯數×導體線芯標稱截面mm2 或?qū)?shù)×2×導體線芯標稱截面mm2 No. of cores (or No. of pairs×2)×Standard cross section of conductor mm2 |
